MaalonDrive® HighAcc 10mm – Type 11
Ultra-high angular resolution, small outer dimensions and uncomplicated stepper motor technology characterise the MaalonDrive® HighAcc 10mm – type 11.
The micro positioning system can easily be operated in an open loop control, as it is driven by a stepper motor with 20 steps per rotation.
This is directly connected to a zero-backlash and extremely high-reduction MaalonDrive® gear with a reduction ratio of 1000:1 in a single stage.
The output shaft is precisely guided by preloaded ball bearings which allow the application to be directly connected.
Benefits
1) High repeatability
2) Lifetime lubrication
3) Preloaded ball bearing
4) Robust control without feedback system
5) Zero backlash at ultra high resolution
Technical parameters
The values shown are based on calculations and measurement procedures carried out by Micromotion GmbH, which are carried out according to the current state of the art. Our definitions can be found at www.micromotion-drives.com. For further information please contact sales@micromotion.de.
Nr.
Parameter
Symbol
Value
Properties
P-003
Ratio
i
1000 : 1
P-004
Self-locking
ja
P-008
Repeatability unidirectional
13.24 arcsec
P-009
Repeatability bidirectional
20.108 arcmin
P-010
Accuracy
15.216 arcmin
P-011
Transmission accuracy
30.432 arcmin
P-012
Resolution
0.018 °
P-013
Torsional stiffness
3.80 Nm/rad
P-014
Lost motion
20 arcmin
P-015
Backlash
0 arcmin
P-016
Rated torque
T
9 mNm
P-017
Peak torque
T
19 mNm
P-018
Momentary peak torque
T
47 mNm
P-021
Rated input speed
n
10000 rpm
P-022
Maximum input speed
n
21000 rpm
P-023
Rated output speed
n
10 rpm
P-024
Maximum output speed
n
21 rpm
P-026
No-load starting torque
T
105 μNm
P-027
No-load running torque
T
70 μNm
P-028
Rated running torque
T
675 μNm
P-034
Lifetime for rated operation
1000 h
P-035
Radial backlash output shaft
0 μm
P-036
Axial backlash output shaft
0 μm
P-037
Radial stiffness
c
1.91 N/μm
P-038
Axial stiffness
c
40 N/μm
P-039
Max. radial load on output shaft (non-operating, constant load)
F
50 N
P-040
Max. radial load on output shaft (non-operating, impulsive load)
F
15 N
P-041
Max. radial load on output shaft (operating, constant load)
F
6 N
P-042
Max. radial load on output shaft (operating, impulsive load)
F
6 N
P-043
Max. axial load on output shaft (non-operating, constant
F
150 N
P-044
Max. axial load on output shaft (non-operating, impulsive load)
F
50 N
P-045
Max. axial load on output shaft (operating, constant load)
F
380 N
P-046
Max. axial load on output shaft (operating, impulsive load)
F
127 N
P-055
Moment of inertia
I
955 * 10-4 gcm2
P-056
Weight
m
14 g
P-057
Min. permissible ambient temperature (non-operating)
T
-35 °C
P-058
Min. permissible ambient temperature (operating)
T
-20 °C
P-059
Max. permissible ambient temperature (non-operating)
T
130 °C
P-060
Max. permissible ambient temperature (operating)
T
70 °C
Motor data: Stepper AM 1020-2R-A0.25
P-100
Motortype
Stepper
P-102
Maximum speed of motor
n
21000 rpm
P-103
Resonance frequency of motor
f
140 Hz
P-105
Holding torque of motor (unpowered)
T
0.2 mNm
P-109
Rated current of motor
I
250 mA
P-111
Rated voltage of motor
U
2 V
P-112
Phase resistance of motor
R
8 ohm
P-113
Inductance of motor
L
2.4 mH
P-114
Amplitude BEMF of motor
U
0.6 mV/rpm
P-115
Full step angle of motor
18 °
P-116
Angular accuracy of step of motor
±1.8 °
P-117
Electrical time constant of motor
t
0.32 ms
P-118
Max. coil temperature of motor
T
130 °C
P-119
Thermal resistance of motor between coil and housing
Rth1
3.9 K/W
P-120
Thermal resistance of motor between housing and air
Rth2
53.8 K/W
P-121
Thermal time constant of the coil of the motor
τw1
3200 ms
P-122
Thermal time constant of the housing of the motor
τw2
200000 ms
P-123
Insulation voltage of motor
U
200 V
Material information
P-900
RoHS compliant
ja
P-901
Lubrication of output bearing gearbox
Longtime PD2
P-902
Lubrication of input bearing gearbox
Longtime PD2
P-903
Lubrication of gear component set
Molykote BR 2 plus
P-904
Lubrication of bearing motor
Synthetic light ester oil
P-908
Material of gear component set
NiFe
P-909
Material of output bearing gearbox
1.4108 DIN EN
P-910
Material of input bearing gearbox
1.4108 DIN EN
P-911
Material of bearing motor
Stainless steel
P-912
Material of gearbox output side
1.4305 DIN EN
P-913
Material of gearbox input side
1.4301 DIN EN
P-914
Material of motor housing
Anodized aluminum
Graphs
P-019

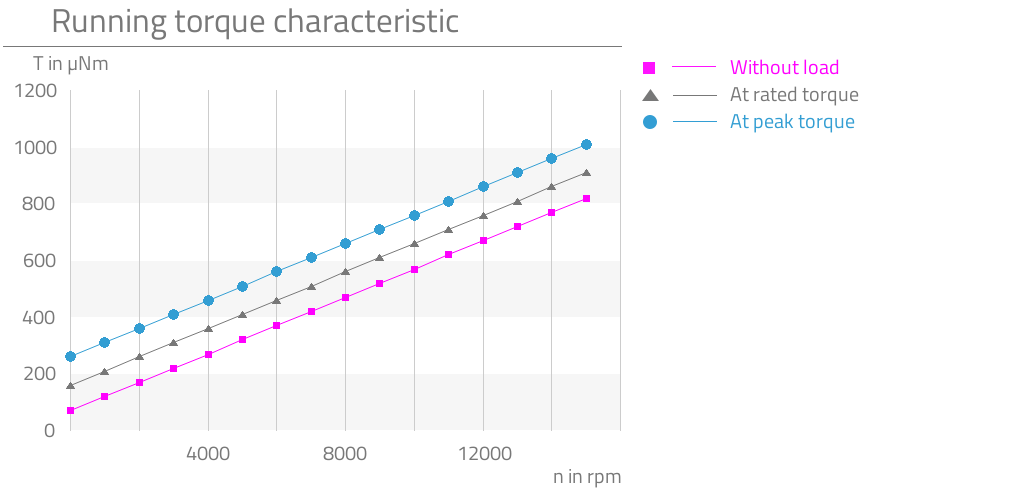

P-029
