MaalonDrive® SpecialShaft 10mm – Type 5
The MaalonDrive® SpecialShaft 10mm – type 5 micro positioning system is characterised by an application-specific geometry of the output shaft and, as a result, can be optimally integrated in the application.
The combination of a zero-backlash and high-reduction MaalonDrive® gear with a reduction ratio of 1000:1 with an DC motor with rated voltage of 6V and an integrated encoder with a resolution of 256 pulses per rotation results in a high-performance micro positioning system.
Preloaded ball bearings are mounted on the output side, allowing the application to be directly connected.
Benefits
1) Vacuum suitable lubrication
2) Preloaded ball bearing
3) Easy controllability
4) Custom designed output shaft
5) Zero backlash at ultra high resolution
Technical parameters
The values shown are based on calculations and measurement procedures carried out by Micromotion GmbH, which are carried out according to the current state of the art. Our definitions can be found at www.micromotion-drives.com. For further information please contact sales@micromotion.de.
Graphs

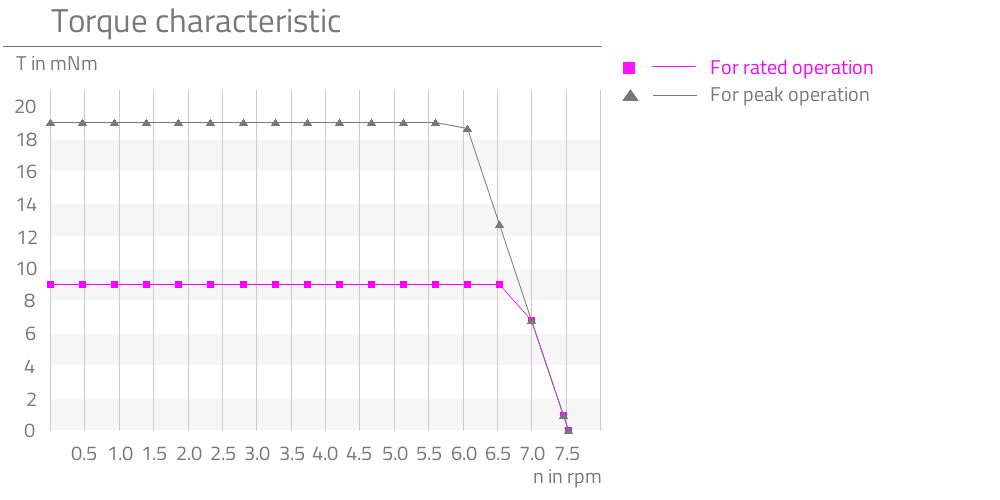

P-019

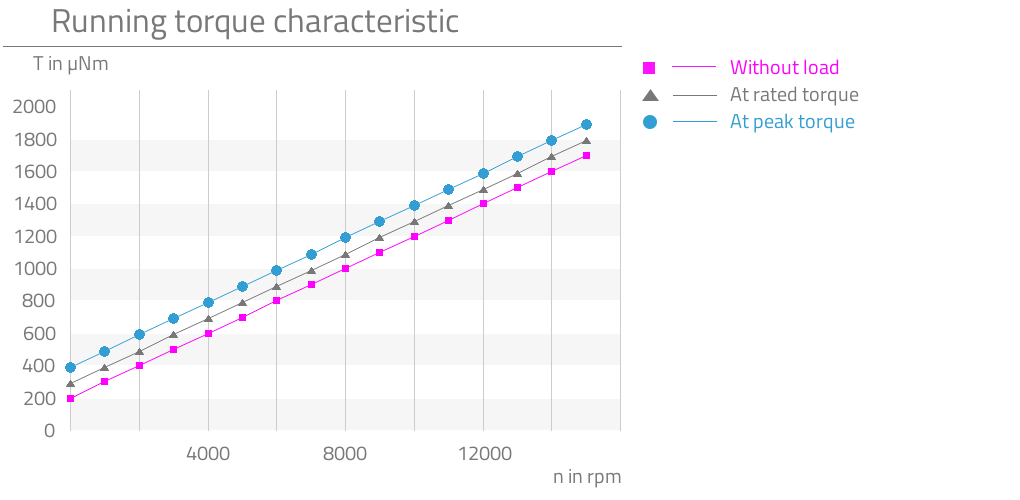

P-029
