MaalonDrive® UHV 19mm – Type 2
The MaalonDrive® UHV 19mm – type 1 is, thanks to the dry lubrication and the materials that are used, especially well suited for applications in extreme environmental conditions, particularly in ultra-high-vacuum environments.
It is driven by a stepper motor with 200 steps per rotation and an encoder with 3600 pulses per rotation.
Directly connected to the motor is a zero-backlash and high-reduction MaalonDrive® gear with a reduction ratio of 500:1 that is equipped with a preloaded ball bearing on the output side to which the application can be directly connected.
Benefits
1) High repeatability
2) Suitable in wide temperature range
3) Dry lubrication due to coatings
4) Easy controllability
5) Zero backlash at high resolution
Technical parameters
The values shown are based on calculations and measurement procedures carried out by Micromotion GmbH, which are carried out according to the current state of the art. Our definitions can be found at www.micromotion-drives.com. For further information please contact sales@micromotion.de.
Nr.
Parameter
Symbol
Value
Properties
P-001
Vacuum suitable
UHV
P-003
Ratio
i
500 : 1
P-004
Self-locking
ja
P-008
Repeatability unidirectional
21.296 arcsec
P-009
Repeatability bidirectional
40.0432 arcmin
P-010
Accuracy
15.0432 arcmin
P-011
Transmission accuracy
30.0864 arcmin
P-012
Resolution
0.0036 °
P-013
Torsional stiffness
6.13 Nm/rad
P-014
Lost motion
40 arcmin
P-015
Backlash
0 arcmin
P-016
Rated torque
T
4 mNm
P-017
Peak torque
T
12 mNm
P-018
Momentary peak torque
T
16 mNm
P-021
Rated input speed
n
1000 rpm
P-022
Maximum input speed
n
1000 rpm
P-023
Rated output speed
n
2 rpm
P-024
Maximum output speed
n
2 rpm
P-026
No-load starting torque
T
202.5 μNm
P-027
No-load running torque
T
315 μNm
P-028
Rated running torque
T
1815 μNm
P-034
Lifetime for rated operation
200 h
P-035
Radial backlash output shaft
0 μm
P-036
Axial backlash output shaft
0 μm
P-037
Radial stiffness
c
11.32 N/μm
P-038
Axial stiffness
c
40 N/μm
P-039
Max. radial load on output shaft (non-operating, constant load)
F
135 N
P-040
Max. radial load on output shaft (non-operating, impulsive load)
F
45 N
P-041
Max. radial load on output shaft (operating, constant load)
F
32 N
P-042
Max. radial load on output shaft (operating, impulsive load)
F
32 N
P-043
Max. axial load on output shaft (non-operating, constant
F
150 N
P-044
Max. axial load on output shaft (non-operating, impulsive load)
F
50 N
P-045
Max. axial load on output shaft (operating, constant load)
F
380 N
P-046
Max. axial load on output shaft (operating, impulsive load)
F
127 N
P-055
Moment of inertia
I
11559 * 10-4 gcm2
P-056
Weight
m
79 g
P-057
Min. permissible ambient temperature (non-operating)
T
-20 °C
P-058
Min. permissible ambient temperature (operating)
T
-20 °C
P-059
Max. permissible ambient temperature (non-operating)
T
150 °C
P-060
Max. permissible ambient temperature (operating)
T
120 °C
Motor data: Stepper VSS 19.200.1,2-UHVG-4LP
P-100
Motortype
Stepper
P-102
Maximum speed of motor
n
1000 rpm
P-105
Holding torque of motor (unpowered)
T
0.9 mNm
P-109
Rated current of motor
I
1200 mA
P-111
Rated voltage of motor
U
42 V
P-112
Phase resistance of motor
R
0.63 ohm
P-113
Inductance of motor
L
0.21 mH
P-115
Full step angle of motor
1.8 °
P-116
Angular accuracy of step of motor
±0.09 °
P-117
Electrical time constant of motor
t
0.333 ms
P-118
Max. coil temperature of motor
T
300 °C
Encoder data
P-201
Impulses per revolution of encoder
3600
P-202
Channels of encoder
A, A\, B, B\, I, I\
P-203
Frequency range of encoder
f
200 kHz
P-204
Operating voltage of encoder
U
4.5 - 30 V
P-205
Rated current consumption of encoder
I
35 mA
P-206
Output current of encoder
I
20 mA
P-207
Signal/phase shifting of encoder
90±18 °
Material information
P-900
RoHS compliant
ja
P-901
Lubrication of output bearing gearbox
MoS2 (dry lubrication)
P-902
Lubrication of input bearing gearbox
MoS2 (dry lubrication)
P-903
Lubrication of gear component set
DICRONITE®/MoS2(drylubrication)
P-904
Lubrication of bearing motor
Lubcon Ultratherm 2000
P-908
Material of gear component set
NiFe
P-909
Material of output bearing gearbox
1.4108 DIN EN
P-910
Material of input bearing gearbox
1.4108 DIN EN
P-911
Material of bearing motor
Stainless steel
P-912
Material of gearbox output side
1.4305 DIN EN
P-913
Material of gearbox input side
1.4043 DIN EN
P-914
Material of motor housing
Stainless steel
Graphs

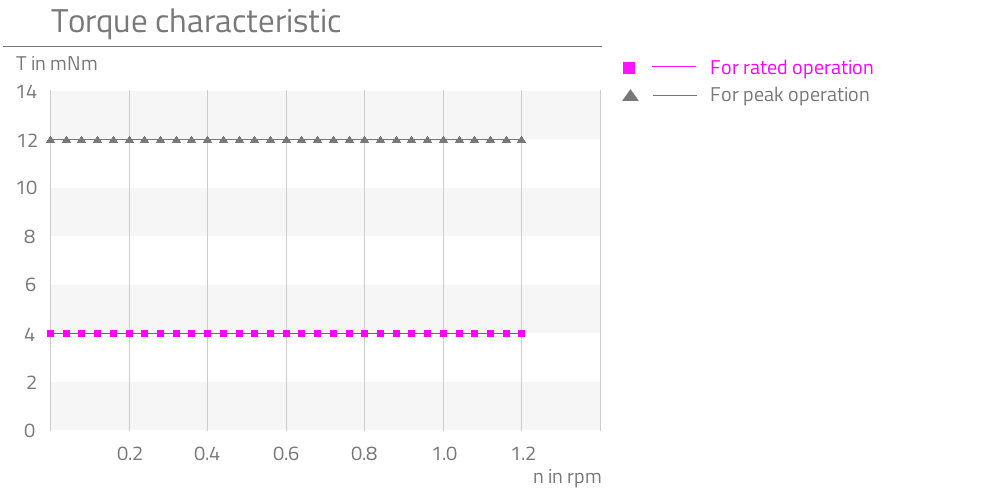

P-019

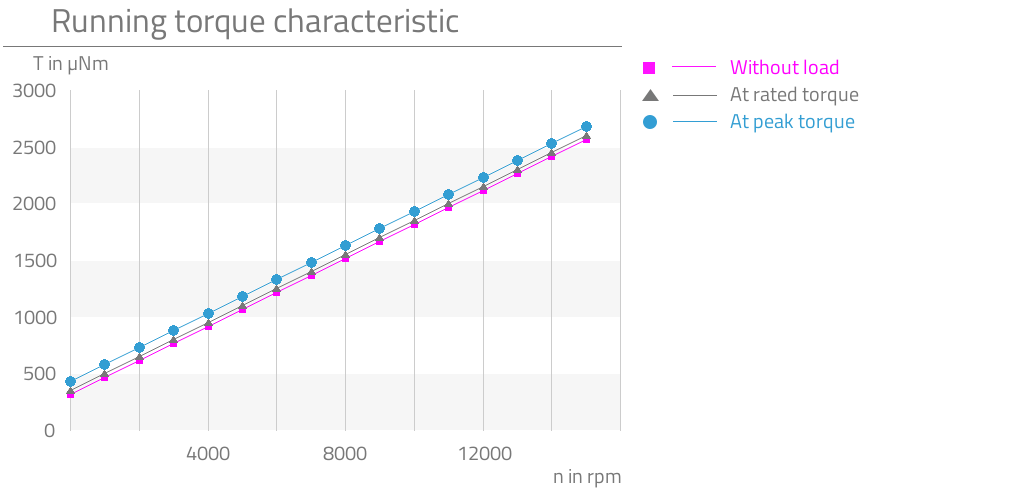

P-029
