MaalonDrive® Hollow 10mm – Type 8
The MaalonDrive® Hollow 10mm – type 8 micro positioning system combines hollow shaft, tool holder and vacuum supply in one system.
The robust bearing of the output shaft and the ability to use a gripper tool directly in the input shaft via a magnetic coupling are the main highlights of this micro actuator solution.
The micro positioning system can easily be operated in an open loop control, as it is driven by a stepper motor with 20 steps per rotation.
At the heart of this precise and reliable micro gearbox is a zero-backlash MaalonDrive® gear with a reduction ratio of 160:1.
Benefits
1) Hollow shaft thru center of rotational axis
2) Preloaded ball bearing
3) Custom designed tool holder
4) Integrated tool fitting
5) Integrated vacuum supply for tool
Technical parameters
The values shown are based on calculations and measurement procedures carried out by Micromotion GmbH, which are carried out according to the current state of the art. Our definitions can be found at www.micromotion-drives.com. For further information please contact sales@micromotion.de.
Nr.
Parameter
Symbol
Value
Properties
P-003
Ratio
i
82.2857 : 1
P-004
Self-locking
ja
P-006
Hollow shaft
ja
P-008
Repeatability unidirectional
54.375 arcsec
P-009
Repeatability bidirectional
21.3125 arcmin
P-010
Accuracy
14.625 arcmin
P-011
Transmission accuracy
29.25 arcmin
P-012
Resolution
0.21875 °
P-013
Torsional stiffness
8.25 Nm/rad
P-014
Lost motion
12 arcmin
P-015
Backlash
0 arcmin
P-016
Rated torque
T
5 mNm
P-017
Peak torque
T
10 mNm
P-018
Momentary peak torque
T
23 mNm
P-021
Rated input speed
n
10000 rpm
P-022
Maximum input speed
n
21000 rpm
P-023
Rated output speed
n
121.528 rpm
P-024
Maximum output speed
n
255.208 rpm
P-026
No-load starting torque
T
120 μNm
P-027
No-load running torque
T
80 μNm
P-028
Rated running torque
T
645 μNm
P-034
Lifetime for rated operation
1000 h
P-035
Radial backlash output shaft
0 μm
P-036
Axial backlash output shaft
0 μm
P-037
Radial stiffness
c
2.3 N/μm
P-038
Axial stiffness
c
40 N/μm
P-039
Max. radial load on output shaft (non-operating, constant load)
F
55 N
P-040
Max. radial load on output shaft (non-operating, impulsive load)
F
20 N
P-041
Max. radial load on output shaft (operating, constant load)
F
7 N
P-042
Max. radial load on output shaft (operating, impulsive load)
F
7 N
P-043
Max. axial load on output shaft (non-operating, constant
F
150 N
P-044
Max. axial load on output shaft (non-operating, impulsive load)
F
50 N
P-045
Max. axial load on output shaft (operating, constant load)
F
380 N
P-046
Max. axial load on output shaft (operating, impulsive load)
F
127 N
P-055
Moment of inertia
I
960.01 * 10-4 gcm2
P-056
Weight
m
30 g
P-057
Min. permissible ambient temperature (non-operating)
T
-20 °C
P-058
Min. permissible ambient temperature (operating)
T
0 °C
P-059
Max. permissible ambient temperature (non-operating)
T
80 °C
P-060
Max. permissible ambient temperature (operating)
T
60 °C
P-061
Tool fitting
Ø10h6 – 3.5 deep with magnetic fixation
P-062
Connecting for vacuum supply
M5 – 2 deep
P-099
Additional technical data
- Vaccum supply; -magnetic Pick Tool Holder; - axial spring-loaded;
Motor data: Stepper AM 1020-2R-A0.25
P-100
Motortype
Stepper
P-102
Maximum speed of motor
n
21000 rpm
P-103
Resonance frequency of motor
f
140 Hz
P-105
Holding torque of motor (unpowered)
T
0.2 mNm
P-109
Rated current of motor
I
250 mA
P-111
Rated voltage of motor
U
2 V
P-112
Phase resistance of motor
R
8 ohm
P-113
Inductance of motor
L
2.4 mH
P-114
Amplitude BEMF of motor
U
0.6 mV/rpm
P-115
Full step angle of motor
18 °
P-116
Angular accuracy of step of motor
±1.8 °
P-117
Electrical time constant of motor
t
0.32 ms
P-118
Max. coil temperature of motor
T
130 °C
P-119
Thermal resistance of motor between coil and housing
Rth1
3.9 K/W
P-120
Thermal resistance of motor between housing and air
Rth2
53.8 K/W
P-121
Thermal time constant of the coil of the motor
τw1
3200 ms
P-122
Thermal time constant of the housing of the motor
τw2
200000 ms
P-123
Insulation voltage of motor
U
200 V
Material information
P-900
RoHS compliant
ja
P-901
Lubrication of output bearing gearbox
Longtime PD2
P-902
Lubrication of input bearing gearbox
Longtime PD2
P-903
Lubrication of gear component set
Molykote BR 2 plus
P-904
Lubrication of bearing motor
Synthetic light ester oil
P-908
Material of gear component set
NiFe
P-909
Material of output bearing gearbox
1.4108 DIN EN
P-910
Material of input bearing gearbox
1.4108 DIN EN
P-911
Material of bearing motor
Stainless steel
P-912
Material of gearbox output side
1.4305 DIN EN
P-913
Material of gearbox input side
1.4305 DIN EN
P-914
Material of motor housing
Anodized aluminum
Graphs
P-019

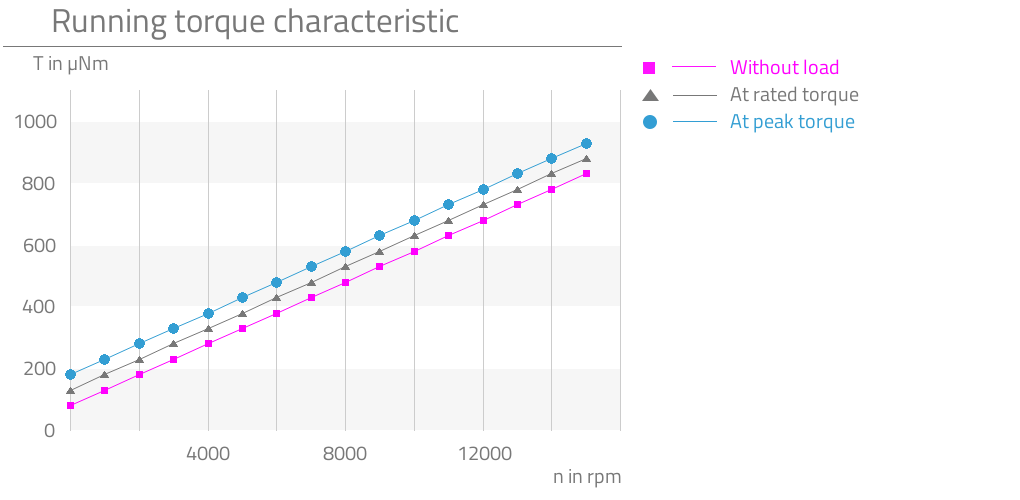

P-029
